Baja Warrior MB200 Rear Suspension Kit

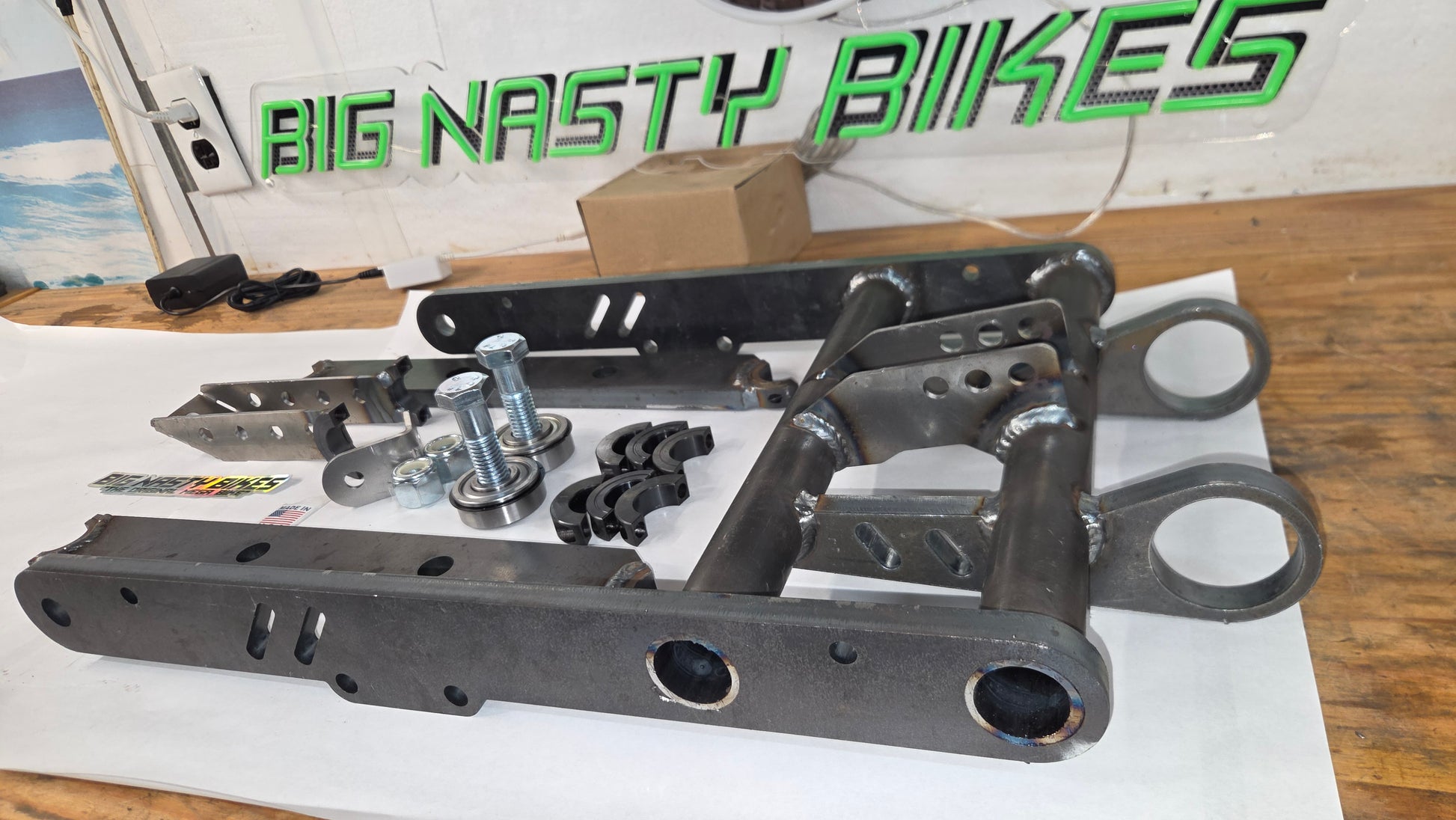

Kit includes :

-Bolt in frame supports to mount swingarm

-Bolt in adjustable upper shock mount

-Fully welded swingarm

-KYB rear shock (Honda CBR300 Rear Shock)

-Chain Tensioner and roller

-Frame plugs for cut offs

If you wish to use the stock drum brake, a 75" GY6 scooter brake cable works, or you can upgrade to disc brake with a trailmaster rear wheel setup

No welding is required to install this, but could be welded in if you wish

This kit adds 5" of suspension travel, 4" extended wheelbase and 2" of seat height and will clear larger than stock tires up to 22x11-10" but will also be able to fit my "Big nasty" swingarms for up to a 27" tire. These are able to use the stock rear wheel and axle, stock drum brake, but also has a provision for bolt on disc brake upgrade using the trailmaster rear brake setup.
