Big Nasty Full Chassis Kit

Big Nasty Full Chassis Kit

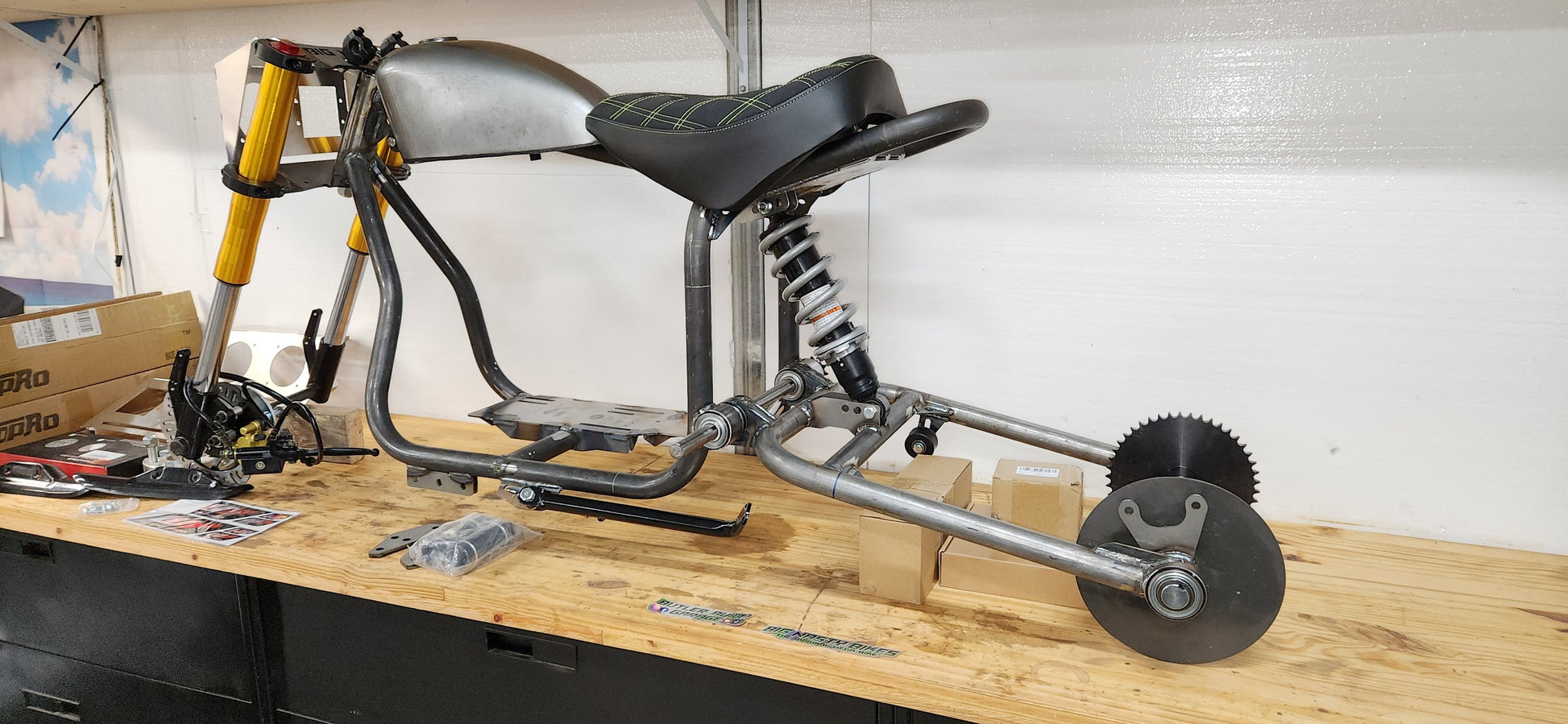

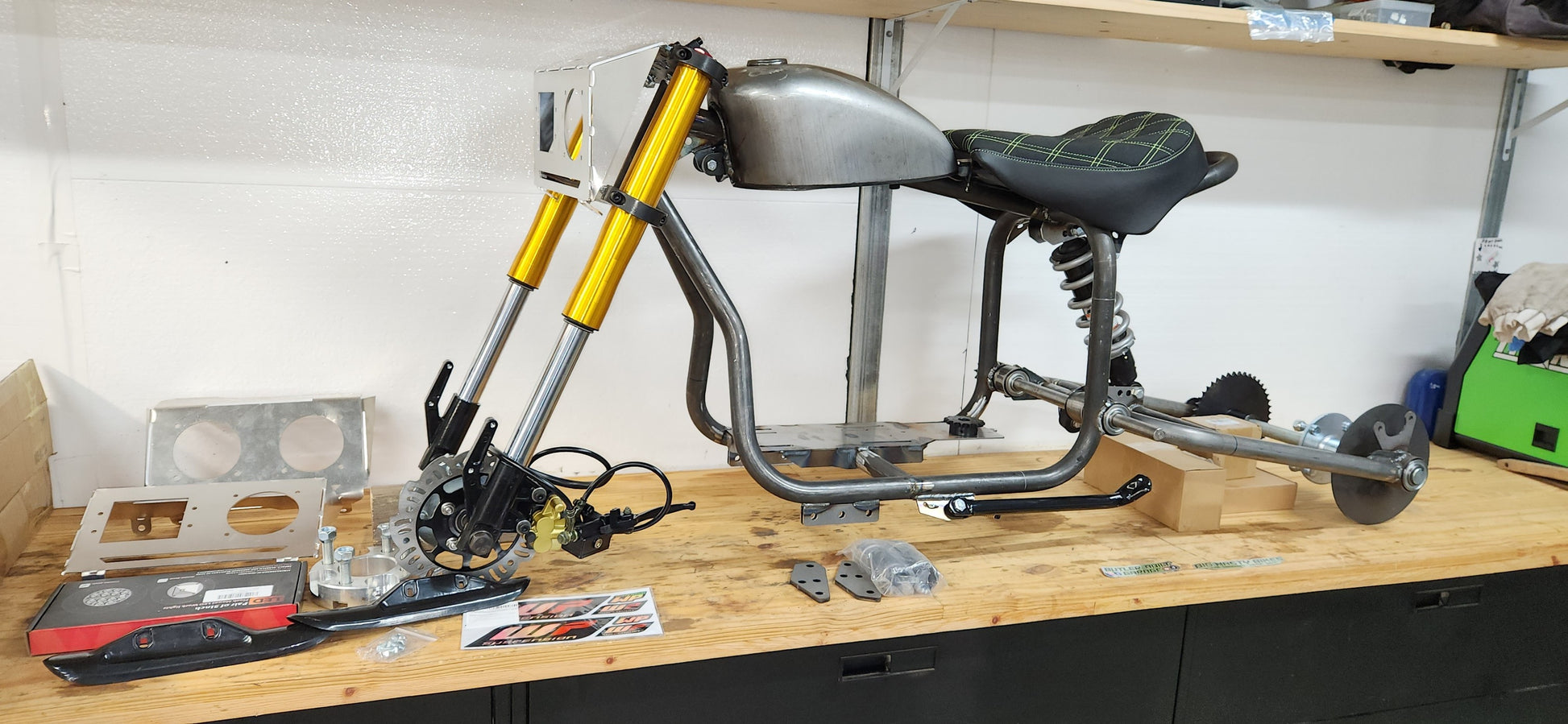

1 Main chassis, 3 possible wheelbase configurations for tires from 18" all the way to 26". Will add more details and pictures on the different forks and swingarm configurations. The original big nasty is running a 26" tire, these bikes also look great on a smaller tire like a 19 or 22. This is quite possibly the baddest "minibike" frame ever made. From the superior .095 DOM tubing construction, to the suspension geometry of modern MX bikes and dual hydraulic discs, 6 way adjustable peg placement, adjustable ride height / shock placement,  Ive cut no corners on these.

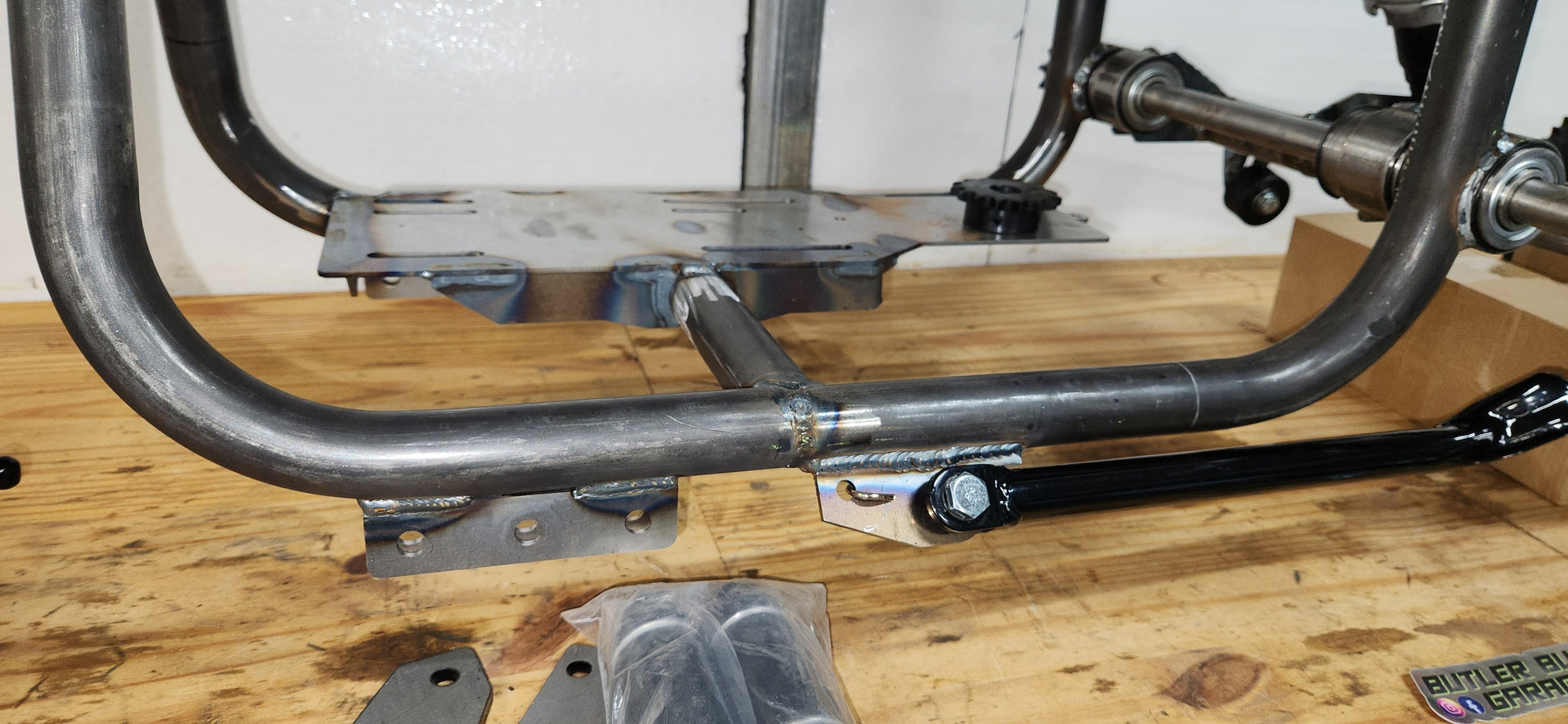

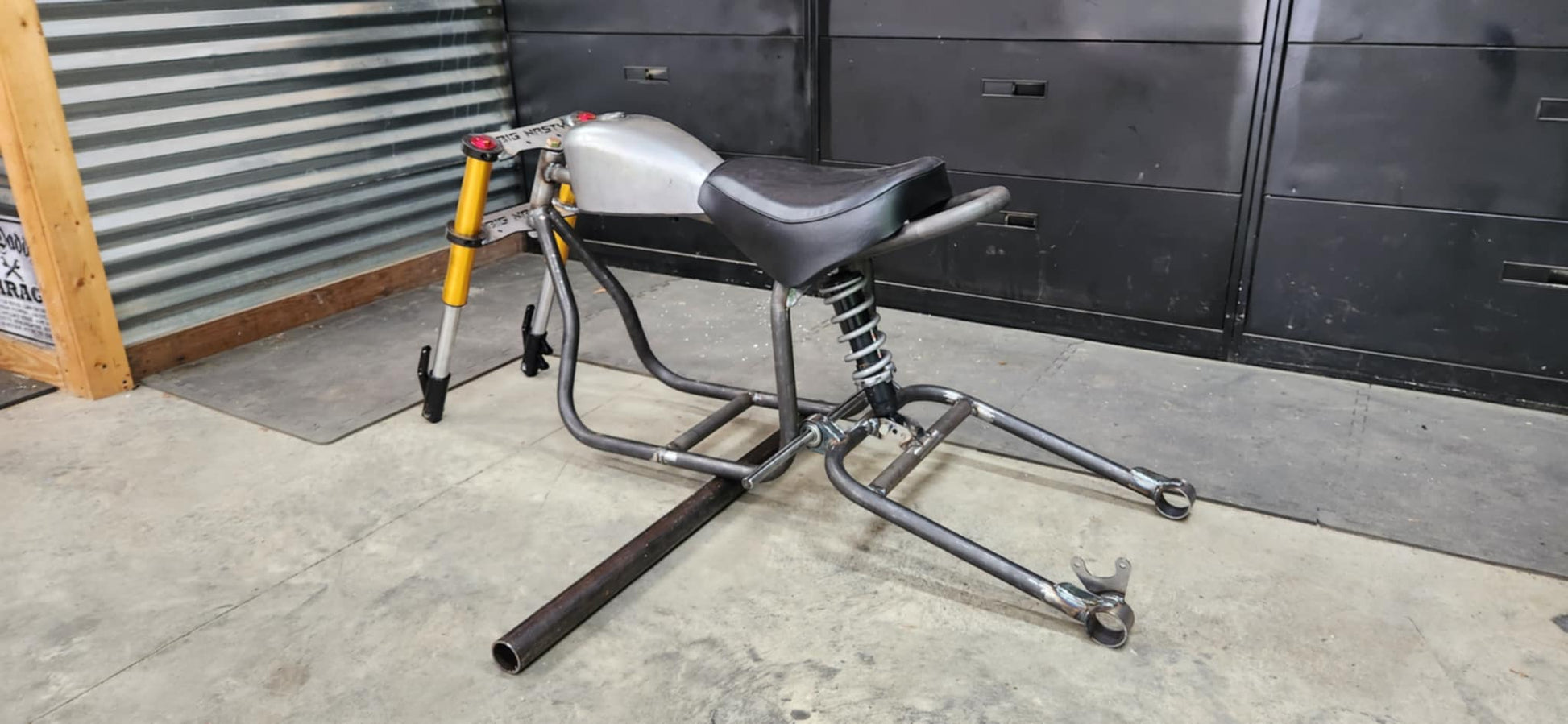

Main frame (1.25" .095 wall seamless DOM tubing, same for swingarm)

- New frame design will fit small block, big block, vanguard twin, other custom engine mounting possible with plenty of room.

- Swingarm (Fits up to a 12" wide tire), different lengths availible depending on tire size choice

- Forks 48mm inverted with fork guards and hardware

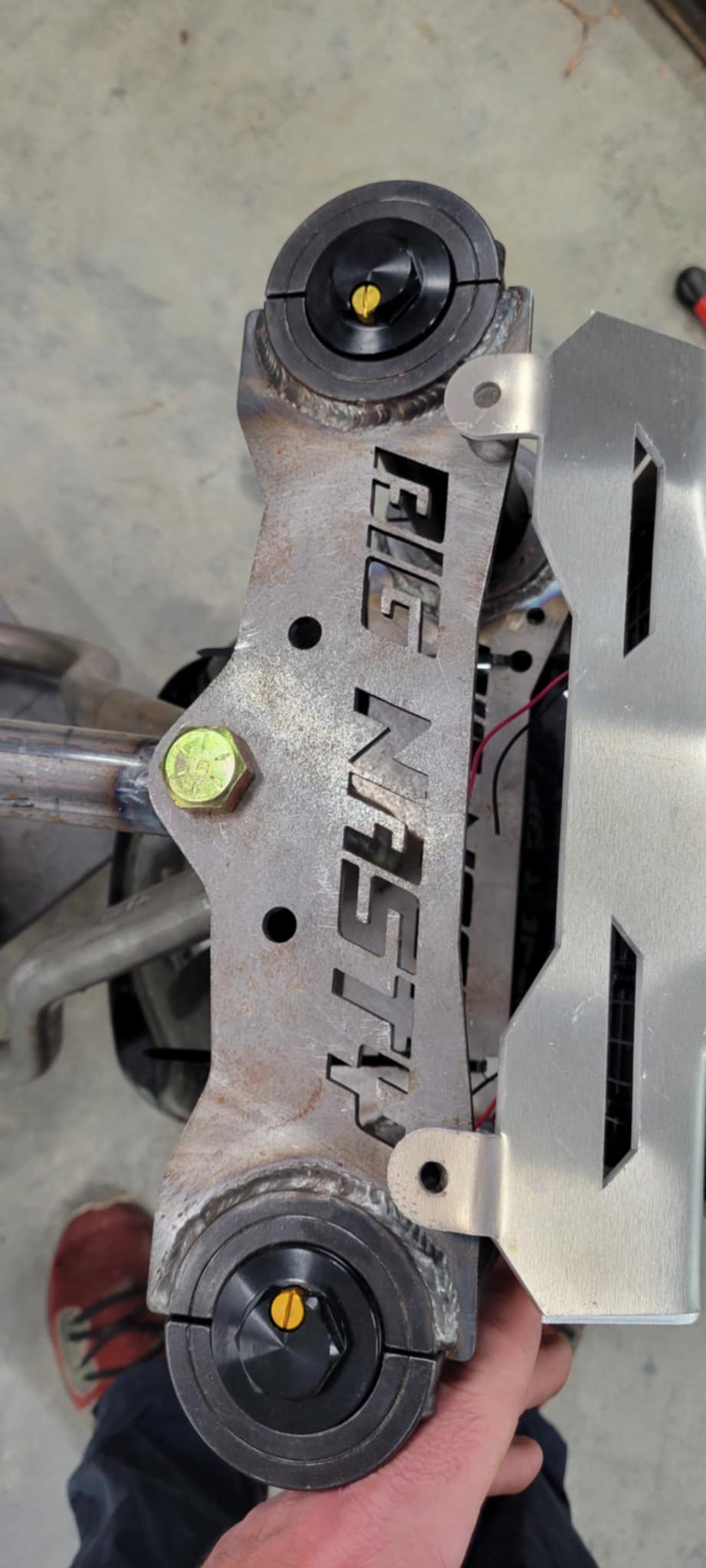

- Custom Fabricated Triple clamps (a little wider to fit a 10" wide front tire if you want)

- Kickstand

- Front and rear hydraulic brakes (Master cylinders, hoses, calipers)

- Pegs

- Rear shock (KYB 360mm)

- All bearings and hardware, spacers, lock collars etc

- Bar mounts

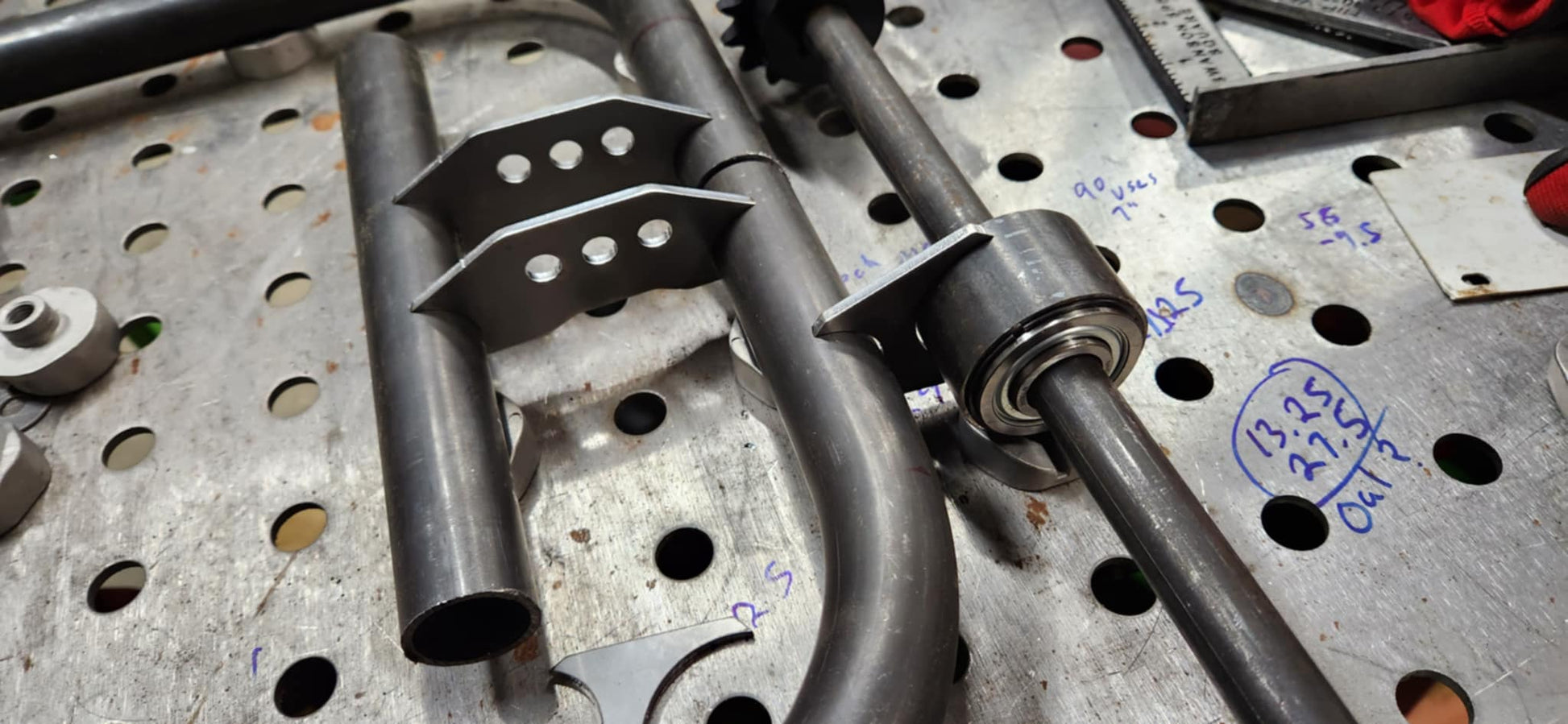

- Frame Integrated Jackshaft- Rear sprocket and jackshaft sprockets (2:1 for less chain speed and also allows for a smaller rear sprocket for more ground clearance, and easy gear ratio changes)

- Front and rear axles- Front and rear Rotors

- All handlebar controls (throttle, kill switch, brake levers)

- Fender Mounts (Setup for ATC pattern front fenders on both front and rear 200x, 250r, 350x etc)

- Seat (custom wrapped seats will be availible as well, custom double stitch lime green pictured)

- 1.5 Gallon Steel Fuel Tank

-Front and rear hubs (Setup for 4x4" 3+4 offset golf cart wheels, different widths/offsets possible if you adjust the brake caliper spacing)

Overall to make a complete bike you will need your engine/cvt, and fenders/wheels of your choice.
